Sand Frac Mining in Wisconsin: Data Gathering and Geocoding

Introduction

The first step in the geographic inquire process is to ask a geographic question. This step was covered in the last report, where it was possible to understand the issues related to sand mining in western Wisconsin. Then, the study of the level of impact that the transportation of sands have on the roads will be done by the use of network analysis.

However, any kind of analysis will need to have data to be based on, which consist in the second step of the geographic inquire process. Then, this report will cover the procedures related to the obtainment of geographic data within the area of interest. One of the main necessary data is the location of the sand mines, which were found in a table with addresses. So, this phase does not only include the simple download of data, but also the necessary preparation of the data to be ready for the analysis. Then, the geocoding process will also be reported. Then, it’s aimed as a result to have a geodatabase containing all the necessary data adapted already for the purposes of this project.

Methodology

Firstly, a number of sources were explored: the National Atlas, the National Wetlands Inventory, the USGS National Map Viewer, the Multi-Resolution Land Characteristics Consortium (MRLC) and the U.S. Department of Agriculture (both Geospatial Data Gateway and the Soil Survey Geographic Database). Each website has a particular way to download data and different levels of availability. Since that in this particular exercise of gathering the data, the focus was in Trempealeau County, some data was downloaded for the whole state, but it was preferred to obtain the county data – usually more detailed.

After obtaining the data, it was necessary to review it to guarantee its consistency. In the case of elevation model (DEM), obtained by MRLC, there was two tiles, so it was necessary to use a mosaic tool to join this data in one only file. In one case – for the National Wetlands Inventory – the data was just not available for Wisconsin, so no data was downloaded. In other case, for the soil data, obtained by SSURGO, it was necessary to take in consideration the drainage index of each feature, so the examination of the database over Microsoft Access and the use of the join tool were necessary.

Next, the design of a geodatabase included to re-project all features to the same coordinate system. The choice is related to the available coordinate system covering the smaller area beyond the Area of Interest. Trempealeau County is located in the Central Zone for the Wisconsin State Plane System, so this was the best choice found. Then, the features were combined in a single geodatabase: Railroads (The National Atlas), Soils (SSURGO), Cropland (Geospatial Data Gateway), Land Cover (USGS) and Elevation (MRLC).

Subsequently, although all these elements are important, the crucial element for the project consists in the location of the mines. For the Trempealeau County, a geodatabase containing it was already obtained; however, since the analysis is for Western Wisconsin, and not only one county, it’s necessary to have a feature class with all the mines.

The data obtained for that consisted in a non-spatial table, where one of the fields contained its addresses and the other fields contained further information about each mine. However, the later network analysis requires a spatial feature for the mines, not only a stand-alone table.

As follows, plotting the points in the map accordingly with its addresses is necessary, which can be done by using the geocoding tool. Geocoding, as said, consists in giving X,Y locations for entities using their address field. It’s based in a locator that has the settings related to the specifications of the type of address used; the necessary fields and, mainly, relies on a reference feature. This can consist in a line feature for the roads, which will use the nodes to find a precise place for the number address. It can also consist in polygons, where the address will be based on zip or state, and the point will be located in the centroid of the polygon. Points are an option for the reference data as well, and would be the most precise scenario, because the output would match the point address of the reference feature. After having the locator, it’s necessary to have a normalized table that fits the specific requirements of the locator used.

For this exercise, the locator chosen was “TA_Address_NA”, which used to be provided by ESRI. In the new version of ArcGIS, the locator is still accessible, but it’s necessary to connect to a specific server. In the near future, it’s possible that this locator might have a restricted access. Anyhow, this locator uses address, city, state and zip fields. The table obtained, however, didn’t have these divisions. Then, the normalization of the table was made.

Since this task is time-consuming and requires attention to the detail, the class was divided in groups of four people, so the division of tasks could increase the productivity. There were approximately 100 entities in the table, after excluding the ones located in Trempealeau County. Then, each person was responsible for the normalization and localization of about 25 mines.

By examining the table, it was possible to notice that the Facility Address field didn’t contain only its address, although its name. There were three types of information there: full address, containing number, street, street type, city and zip; directions, where an intersection was mentioned or a sentence with the explanation of where the place is located; and for last, the PLSS information for the mine.

Considering that, the entities were divided in three different sheets using Microsoft Excel (Figure 1): 14 entities contained full address and were supposed to correctly geocode; 4 entities were based on directions; for last, 7 entities were based on PLSS code.

Figure 1 – Division of entities in different sheets.

With that, only the “(SupposeTo)GeocodeMines” sheet needed to fit the fields of the locator, since the others would need other methods to get a X,Y location. Then, a rough division of fields was made, without much concern to abbreviations on the address, and then the geocoding tool was applied to check what might be changed. Then, the fields were adapted to match better the reference feature. For example, one of the mines had the address “S1678 CTH U”. (Figure 2). Although it’s possible to determine that S stands for South and 1678 is the number address, if you’re not familiar with the typical abbreviations, the “CTH” doesn’t have a intuitive meaning.

Figure 2 – Abbreviation in entity address.

A quick research was made to identify its meaning, resulting in “County Trunk Highway”, which is a nomination exclusive for Wisconsin. After examining the streets of the different counties by Google Earth, it was possible to understand better its structure. It’s extremely common to have different streets named simply “County Road”, which can also be referred with the county name. Inside Eau Claire County, for example, it can also be called “Eau Claire Road”. In counties less urbanized, this is the base of the street naming, using letters of the alphabet as a suffix to differentiate them. They are also usually abbreviated to “Co Rd”, which was found in other entities as well and was not easily comprehended at first (Figure 3).

Figure 3 – Structure of roads near Montana, WI

Then, after analyzing all the addresses and its possible correspondents, a new correct sheet was used to run the geocode tool with. While geocoding, it’s necessary to pay attention on the method used. The locator used will place the feature in the centroid of the zip-code, city or state in case it doesn’t fit in any other category. Then, after running the geocoding tool, it was necessary to analyze the “Loc_name” field to see to which locator the feature was matched to, the desired ones were “US_RoofTop” or “US_Streets” (Figure 4). Because the ones with “US_CityState” and “US_Zipcode” had the feature in the centroid of the polygon, they need to be manually found.

Figure 4 – Examination of “Loc_name” field to recognize unacceptable geocoding.

By comparing the current results in Arc Map to the address search using Google Earth, it was possible to manually locate the mines. A two-screen set was extremely helpful to maintain both softwares open and visible. With that, it was easier to compare ground features and locate them correctly. The ideal scenario was to find the exact location of the mines, what was possible by using some 2013 updated Google Earth satellite images available (Figure 5).

Although remote sensing is not the focus of this project, it’s important to use its skills to recognize a mine by its exclusive tone, association with buildings and trucks, which creates a peculiar circular shape. Also, with remote sensing identification skills, the comparison between the features around the mine enables its placement in Arc Map, where the image was not as updated.

Figure 5 – Typical characteristics of a sand mine using tone, shape and association.

However, not all the mines could be extremely precisely located. Not all mines listed are already built, some are not in a stage where recognition is possible and not all the satellite images are updated enough for the identification. Then, when it was not possible to visualize it, the location was based in the road or directions given by the “Facility Address” field.

This process was used for the entities not geocoded and also the ones based on directions. The difference between them is that for the first ones, an editor session was enough to change its location; while for the second ones, it was necessary to create a field on Excel to input its GCS coordinates available in Google Earth. To increase precision, it’s important to remember to use about six decimal places for GCS coordinates, since in this location, 0.1° represents approximately 8km. After the input, it was necessary to import the stand-alone table, display it using X,Y coordinates and then export the data as a feature class to the geodatabase being used.

For last, the localization of features based on its PLSS was made. It was noticed that the code was no standardized; some features had the name of the township, instead of its number and range. To be able to fix the table with the correct code, a resource provided by the Wisconsin Cartographer’s Office was used: the PLSS Finder. With that, it was possible to localize the Township and Range based on the name given, using the search tool (Figure 6). For that, it was useful to remove the PLSS Covers, some other layers such as County lines and names were useful to localize the features.

Figure 6 – Use of PLSS Finder to identify township and range numbers by its name.

After having an appropriate table, two polygon feature classes were used to localize the same locations inside Arc Map: Sections and Quarter-Sections. However, since most of features didn’t have the quarter-section information, the sections feature was essentially used. In this feature, three fields were mainly used: township (“TWP”), range (“RNG”) and section (“SEC”). The symbolization based on the township field was used to understand better the divisions of the PLSS (Figure 7). First, a query was used to select only the townships necessary and minimize the overloading of the system – which was slowing the process by then. Then, the selection was used to create a new layer, this layer was then symbolized with the townships 32, 33 and 34.

Figure 7 – Symbolization of townships in Wisconsin.

It would be possible to localize each section by the use of symbolization, but that would be time-consuming, especially with the amount of data displayed overloading the system. As faster and easier way to do that is by running a query (Figure 8). That way, the software would automatically find the features that meet the codes of the non-spatial table. The ideal would be to have only one result out of the query, but some entities were located in more than one section or range. In this cases, it was necessary to use the operator “OR” as well and the results were multiple.

Figure 8 – Use of SQL expression in the query to find the appropriate PLSS sections.

However, not only these cases had multiple results. The reason for that is on the “DIR” field. It states if the feature is in the west or east side. However, it was being represented by 2 and 4 and a legend wasn’t available. Then, the multiple results were kept and map visualization would show which direction each one had. After running each query, the selection would be used to create a new feature layer (Figure 9). Multiple layers would be helpful to keep the organization and not overload the system with a large amount of unnecessary data.

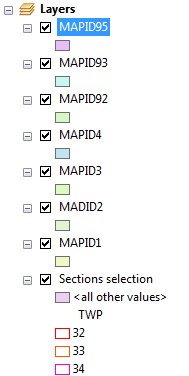

Figure 9 – Different layers to maintain organization.

Then, all the layers would be turned off and, individually, each entity would be located with an imagery base map. Then, with Google Earth open in a different screen, it would be possible to find the mine or approximate to the main street inside the section. The procedure would be similar to the ones for the directions: comparison between different satellite images, input of GCS coordinates in six decimal places, importation in ArcGIS using X,Y coordinates and later data exportation as a feature class.

For last, with all the mines located – even if in different levels of precision – it was necessary to put all together in one only table. However, the fields were already modified and wouldn’t match. Then, a simplified table was created with the key-field “MAPID”, its coordinates and the initials of who found that location. For the coordinate fields, it was necessary to use the “Add X,Y coordinates”. All the features were kept in a geodatabase (Figure 10), so they were all projected in the same coordinate system: Wisconsin State Plane System – Central Zone (NAD 1983). For that reason, the fields created would match each other afterwards. For last, the group agreed in having the coordinates in this same coordinate system and a excel table was made with all the entities. The table would be then be imported to ArcGIS using the X,Y coordinates and later exported as a feature class.

Figure 10 - Geodatabase for the mine location finding.

Results

Therefore, the data gathering resulted in a geodatabase containing the different elements obtained (Figure 11).

Figure 11 – Geodatabase designed for data gathering.

The railroads feature class contains data for the whole United States (Figure 12), but it will be clipped to the area of interest, as soon as this area is defined.

Figure 12 – Railroads

The same generalization happens with the cropland data layer (Figure 13), obtained for the whole state of Wisconsin. In this case, it will be necessary to use a different kind of clipping tool, since it’s a raster feature.

Figure 13 – Cropland Data Layer

Then, since the exercise was focused in the Trempealeau County, some features were collected only within its area, like the soils feature class (Figure 14). The DEM mosaic (Figure 15) and the land cover feature class by NLCD (Figure 16) don’t match the exact boundary of the county, but also don’t cover much beyond that.

Figure 14 – Trempealeau County Soils Feature Class

Figure 15 – Elevation based on a DEM mosaic

Figure 16 – Land Cover by NLCD

Later on, to find the location of mines, after the division of 25 entities for each person, 14 were used in the geocoding tool, having the result of one feature tied – which was easily untied afterwards – and 13 matched. However, from those 13 matched, only seven consisted on the address locator; five of them were matched to the centroid of its zip code and one to the centroid of the city. For these six misplaced entities, the editor tool was used to replace them in the right location. Besides the ones related to the geocoding process, four entities were based in directions and seven in the PLSS code.

Considering all the entities, after joining with the rest of the group, 74 were matched (manually or by geocoding) and 25 didn’t have information enough to be matched. The result was a feature class containing the mine features, originated from Trempealeau database, plus these 74 features localized (Figure 17), based on the excel table designed (Figure 18).

Figure 17 - Sand Mines in Wisconsin

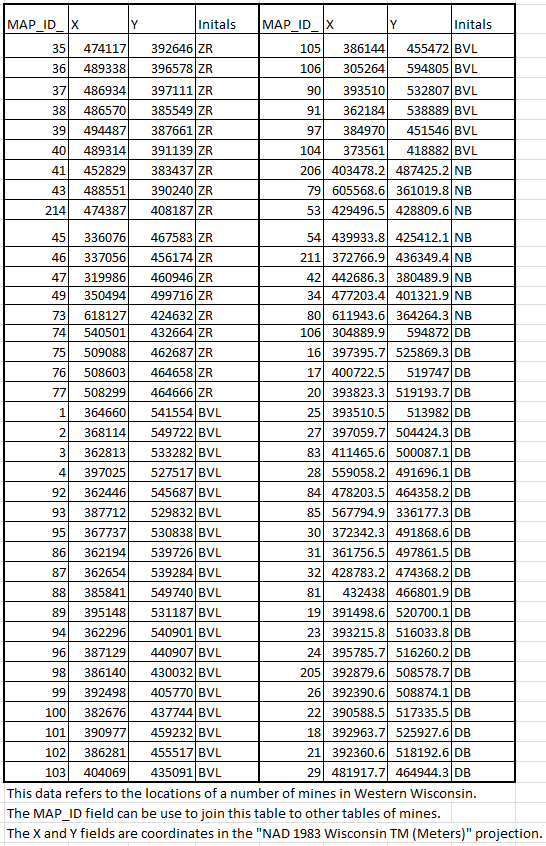

Figure 18 - Simplified table to create sand mines feature class.

Conclusion

The process of gathering data and locating non-spatial table – either manually or through the geocoding tool – is crucial for any project being made that depends on searching data and not finding only spatial files. It’s literally impossible to start your project without these steps, and the results will be the base of all the other steps, so it’s necessary to be really careful with the procedures taken. For that reason and even just because of the nature of the process, it gets time-demanding and complicated to deal with, so patience is extremely desired to deal with it.

The overload of the system is common when dealing with large datasets, especially in the data gathering, where most of the features were rasters; and if not, they contained way too much information, which made the software crash for some times.  A lot of time was also taken by the system overloads when geocoding and using satellite images in Arc Map. For that, it was very useful to use Google Earth, since it has a better performance when dragging, zooming in and out on the map.

Flexibility is also an important element for these tasks, because you frequently need to find different ways to come to an answer, such as dealing with unfamiliar abbreviations or dealing with the overload in the system.

Finally, the exercise can be considered successful in establishing the base data to be later manipulated in order to accomplish the bigger goal of the project. With the data formatted and organized as it’s after this, it will be possible to easily manage it and apply the procedures for the next steps.
